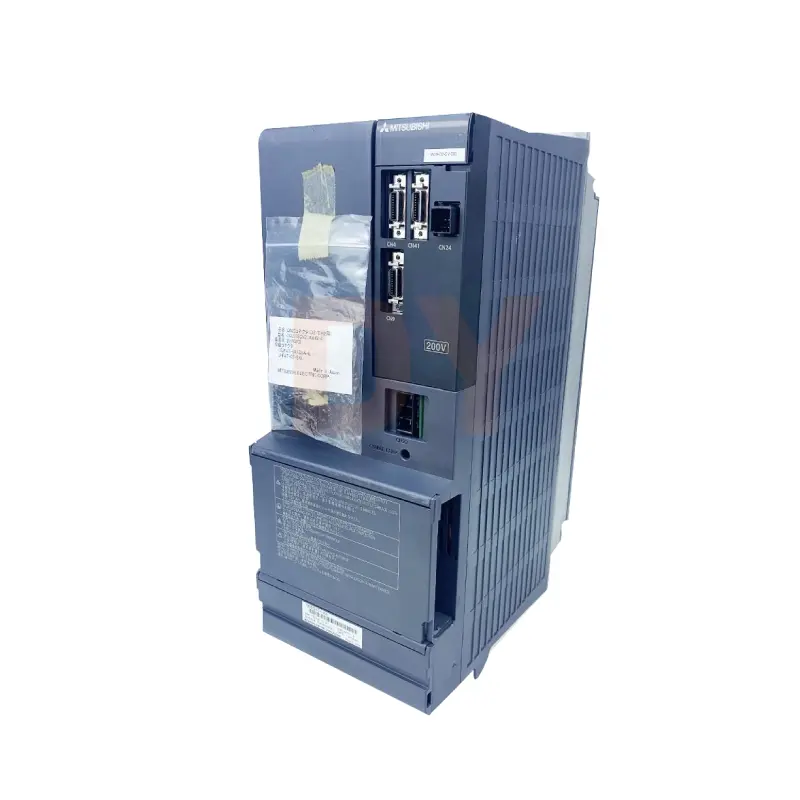

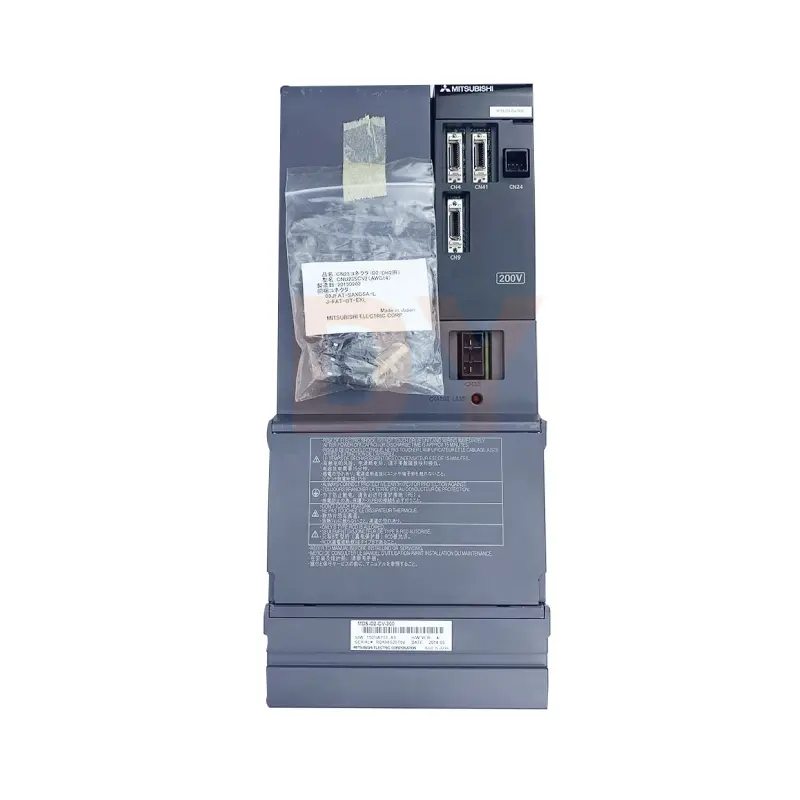

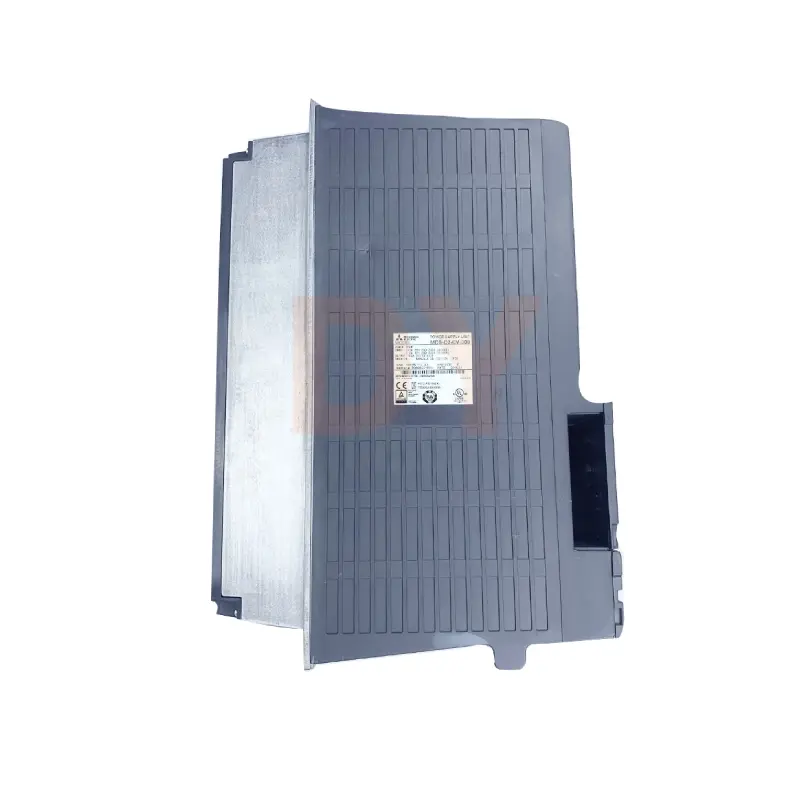

This unit acts as a converter (rectifier) and is equipped with a power regeneration circuit. This circuit efficiently returns regenerative energy from the motors back to the main power supply, contributing to energy efficiency and reduced operating costs.
The converter provides a substantial 26 kW rated output power, capable of supplying large CNC machine systems with the necessary DC current.
It is a core component of the modular MDS-D2 system and must be installed adjacent to the largest capacity spindle drive unit for proper function and control.
The unit features a high-efficiency fin and low-loss power module, allowing for a downsized, space-saving design within the control panel.
It operates with a supply voltage of 200–230 Vac (3-phase input) or DC input.
The unit incorporates a built-in fan for forced ventilation cooling to maintain optimal operating temperatures in industrial environments.
Built with an IP20 protection rating and designed to meet demanding industrial standards for durability and safety.
| Feature | Specification |
|---|---|
| Model Series | MDS-D2 Series |
| Type | AC/DC Converter with Power Regeneration |
| Rated Output Power | 26 kW |
| Rated Input Current | 107 A |
| Input Voltage (AC) | 3-phase, 200–230 V, 50/60 Hz |
| Output Voltage (DC) | 210–311 Vdc |
| Cooling Method | Forced air cooling (built-in fan) |
| Protection Rating | IP20 |
