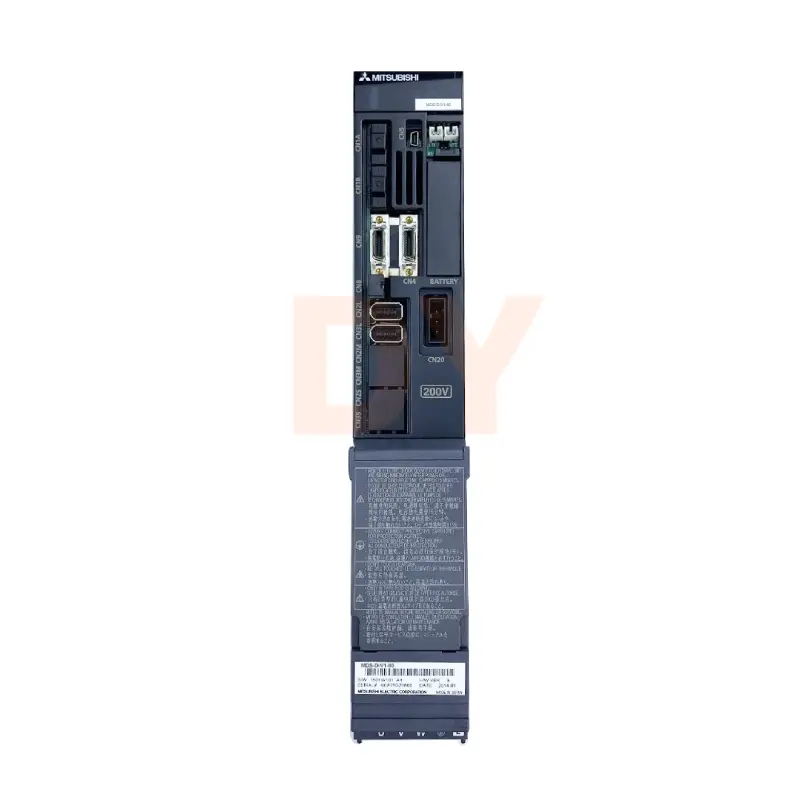

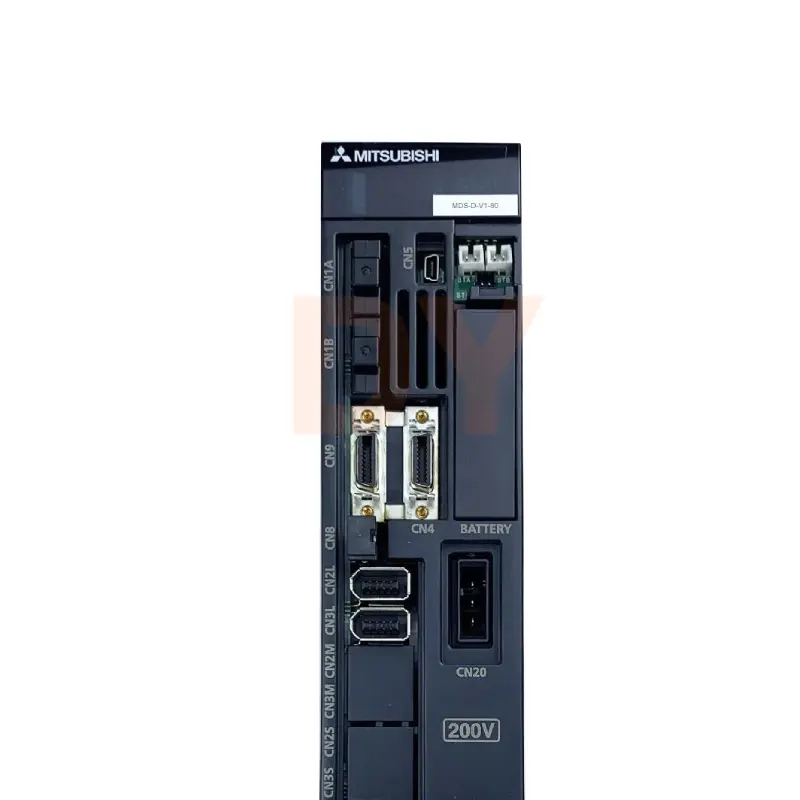

The drive unit efficiently manages the operation of a single servo motor.
Utilizes advanced control systems, including SHG control, to achieve quick acceleration, precise positioning, and smoother rotation, which is vital for high-accuracy machining processes.
The integrated, space-saving design contributes to a reduction in control panel size.
Features an integrated dynamic brake mechanism, which allows for reliable and rapid stopping of the motor.
It can be powered by either a single-phase AC source (200-230V) or a DC bus power supply (270-311V).
The unit is designed to interface seamlessly with Mitsubishi HA and HF series AC servo motors and MELDAS CNC control systems.
Constructed to operate reliably in demanding industrial environments, with features like forced air cooling and IP20 protection.
Incorporates safety features such as overload and thermal protection, and anti-misinsertion mechanisms for motor power connectors.
| Feature | Specification |
|---|---|
| Axes Controlled | 1 (Single-Axis) |
| Rated Output Power | 4.5 kW |
| Rated Output Current | 16 A (input) |
| Input Voltage (AC) | 1 Phase, 200–230 VAC, 50/60 Hz |
| Input Voltage (DC) | 270–311 VDC |
| Cooling Method | Forced air cooling (built-in fan) |
| Protection Rating | IP20 |
DingYan Machinery offer all the parts of Fanuc brand items. Products contains all the accessories of CNC controller, drivers and amplifier, encoder, motor, IO modules, fan and other spare parts.
We want to be your final one-stop CNC machine tool accessories supplier, we have most Fanuc products in stock, let’s help you be more successful in your market!
Dingyan is not an authorized distributor, reseller, or representative of any products displayed on this website. All trademarks, logos, and brand names are the exclusive property of their respective owners. Product references are for identification purposes only and do not imply endorsement, affiliation, or authorization.
If you require any product assistance or support, we are happy to provide it.
DingYan Machinery is committed to creating safe, reliable, and high-performance products for our customers. Furthermore, we will continue to strive to provide more products and brands upon customers’ requirement. Should you have any inquiry, please kindly send us emails or call us.
DingYan Machinery supplies a comprehensive range of Fanuc CNC machine tool parts and accessories, including CNC controllers, drivers, amplifiers, encoders, motors, I/O modules, cooling fans, and other industrial spare parts.
Yes, this unit is engineered for high compatibility, interfacing seamlessly with Mitsubishi HA and HF series AC servo motors as well as MELDAS CNC control systems.
This servo drive unit offers flexible power input options. It can operate on single-phase 200–230 VAC (50/60 Hz) or a 270–311 VDC bus power supply.
All products are built and tested for demanding industrial environments. They feature built-in protection mechanisms like dynamic braking, overload and thermal safeguards, and forced air cooling systems.
You can contact us by sending an email or giving us a call with your required part numbers and quantities. Our customer service team will promptly provide availability and pricing details.
