Mitsubishi OSA405S5AS is an advanced absolute multi-turn encoder, offers unparalleled position detection for servo motors. Its direct, multi-turn absolute feedback enhances system reliability and simplifies demanding automation tasks.

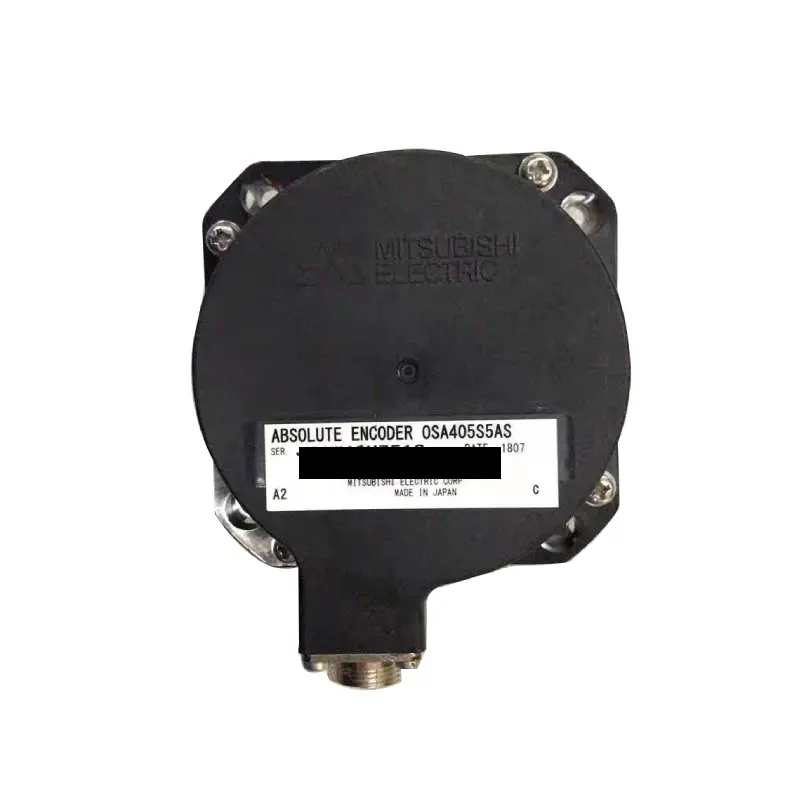

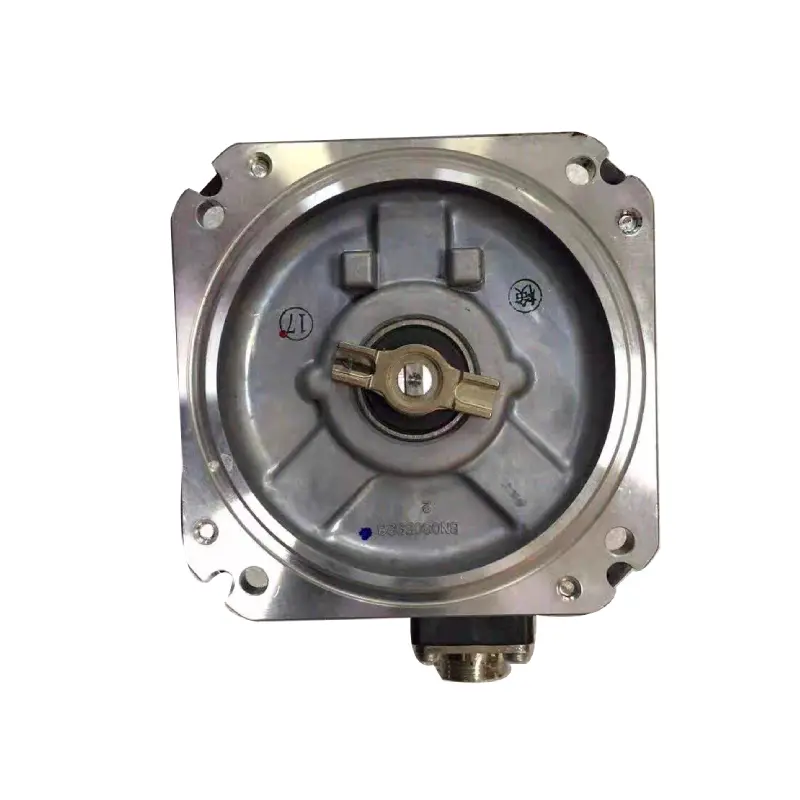

The MITSUBISHI ELECTRIC OSA405S5AS is a high-resolution rotary optical absolute multi-turn encoder, designed for superior position feedback in Mitsubishi servo motor systems. Providing precise absolute multi-turn data via serial output, it operates on a 5VDC supply, ideal for complex motion control.

Send Inquiry

Product Description

Key Features

The MITSUBISHI ELECTRIC OSA405S5AS is a high-resolution rotary optical absolute multi-turn encoder, designed for superior position feedback in Mitsubishi servo motor systems. Providing precise absolute multi-turn data via serial output, it operates on a 5VDC supply, ideal for complex motion control.

Absolute Multi-turn Positioning
Maintains position across power cycles and multiple rotations, eliminating homing.
Exceptional Resolution
Delivers ultra-fine positional data for the highest accuracy requirements.
Digital Serial Output
Ensures robust and noise-immune data communication.
Enhanced System Reliability
Reduces downtime and speeds up recovery from power interruptions.
Simplified Startup
No need for re-referencing, streamlining commissioning and operation.
Optimized for Mitsubishi Systems
Guarantees seamless compatibility and peak performance with Mitsubishi Electric servo systems.
Durable & Robust
Built for reliable operation in harsh industrial environments.

Specifications

Model OSA405S5AS
Manufacturer Mitsubishi Electric Corporation (Japan)
Product Type High-Resolution Servo Motor Rotary Absolute Multi-turn Encoder
Resolution Very High (e.g., 27-bit total: 17-bit single-turn + 10-bit multi-turn)
Output Phases Absolute digital data
Output Format Serial communication (e.g., SSI compatible or proprietary Mitsubishi/Tamagawa serial)
Supply Voltage +5 VDC
Max. Response Frequency Dependent on serial communication speed
Application Precise absolute multi-turn position feedback for servo motors
Connection Specific multi-pin circular connector
Operating Temperature -10 to +70°C (typical industrial range)
Compatibility Designed for use with Mitsubishi Electric MELSERVO Series AC Servo Motors
* Heavy duty: 150% of rated current for 60 seconds every 5 minutes; 180% for 3 seconds every 30 seconds
** Super Heavy duty: 150% of rated current for 60 seconds every 5 minutes; 200% for 3 seconds every 30 seconds

Disclaimer

DingYan is not an authorized distributor, reseller, or representative of any products displayed on this website. All trademarks, logos, and brand names are the exclusive property of their respective owners. Product references are for identification purposes only and do not imply endorsement, affiliation, or authorization.

Frequently Asked Questions

Q: What is the main function of the Mitsubishi OSA405S5AS encoder?
A: The OSA405S5AS is a high-resolution rotary optical absolute multi-turn encoder designed to provide precise positional feedback for Mitsubishi Electric servo motor systems.
Q: Does the OSA405S5AS require homing after a power outage?
A: No, it features absolute multi-turn positioning technology which maintains exact positional data across power cycles, eliminating the need for homing or re-referencing.
Q: What supply voltage does the OSA405S5AS encoder require?
A: This encoder operates on a standard +5 VDC power supply.
Q: Which servo systems are compatible with the OSA405S5AS?
A: It is specifically optimized and designed for seamless compatibility with Mitsubishi Electric MELSERVO Series AC Servo Motors.
Q: What is the operating temperature range for this model?
A: The typical industrial operating temperature range for the OSA405S5AS is -10°C to +70°C.
Q: Is DingYan an authorized distributor of Mitsubishi Electric products?
A: No, DingYan is not an authorized distributor, reseller, or representative of Mitsubishi Electric. Brand references are provided purely for product identification and compatibility purposes.
