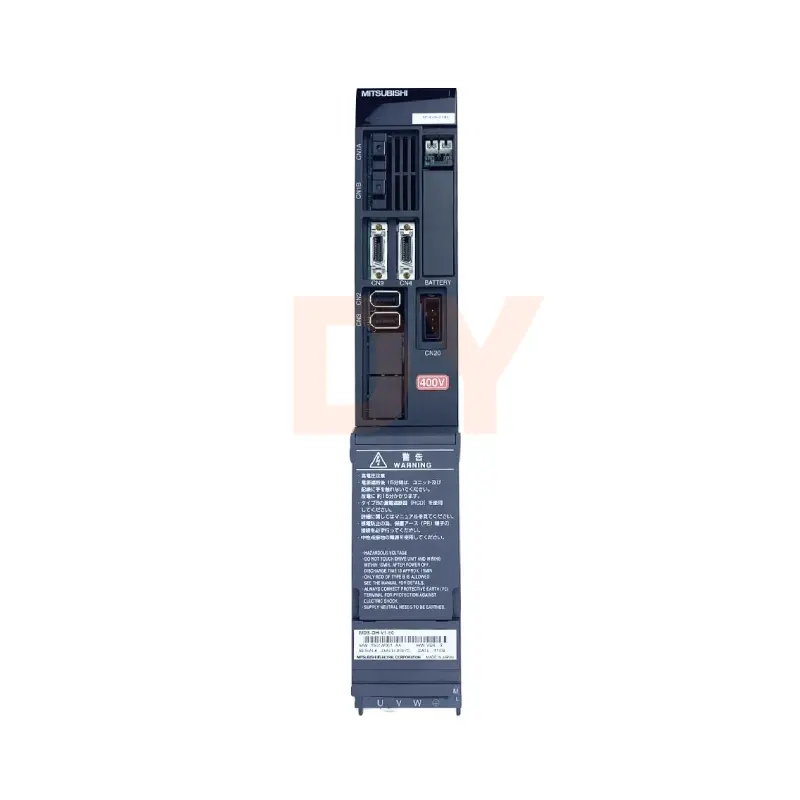

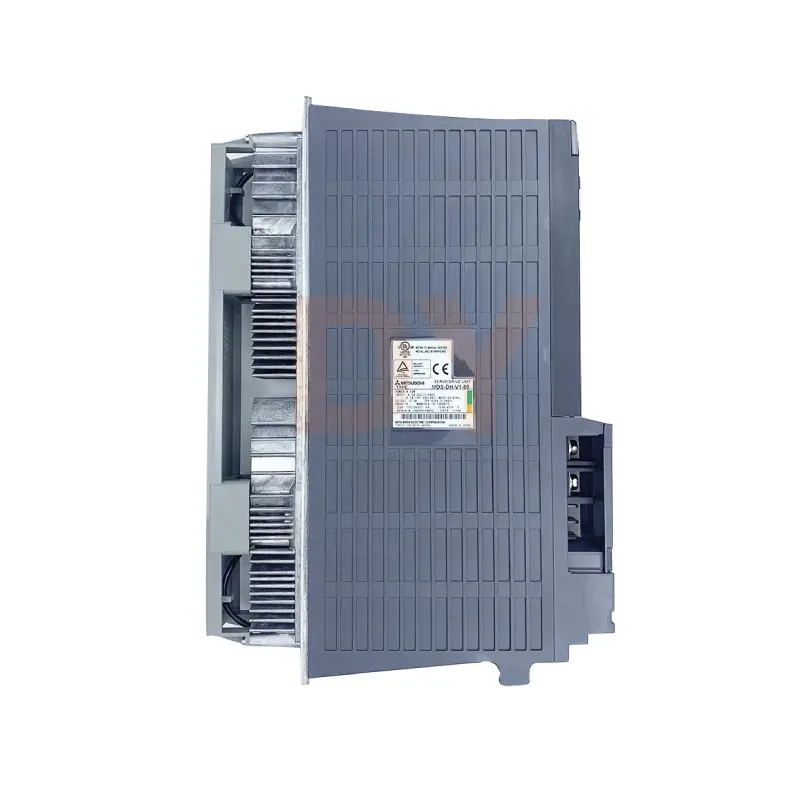

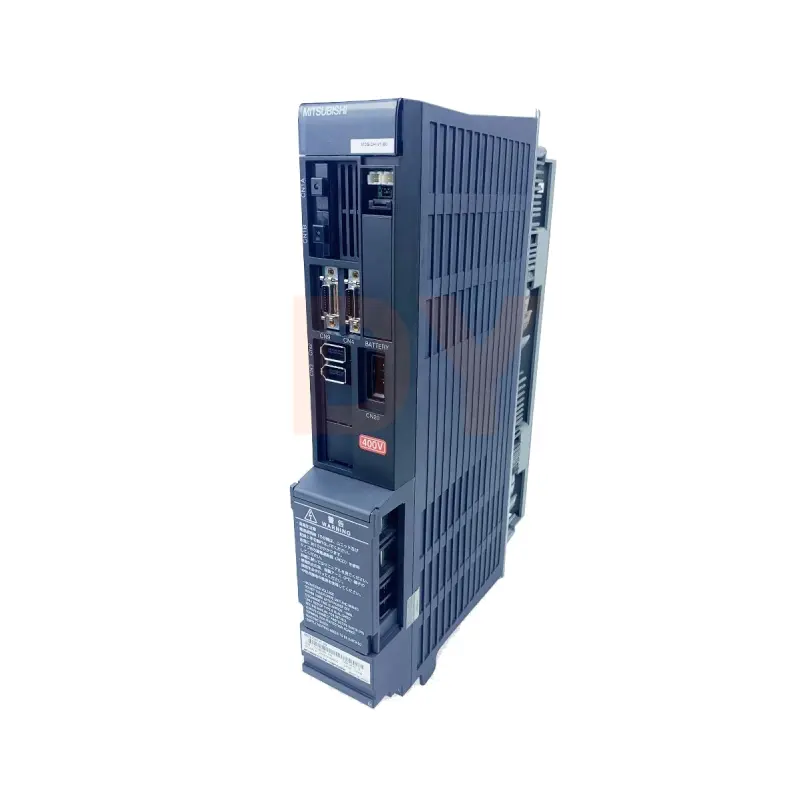

Designed to control a single servo motor, managing position, speed, and torque with high accuracy.
Utilizes advanced SHG control technology and high-speed processing to minimize vibration and improve positioning time.
Features a space-saving design integrating components like the converter to reduce control panel dimensions.
Includes an integrated dynamic brake mechanism for reliable and rapid stopping of the motor.
Accepts input from a DC bus power supply (270-311V) or single-phase AC input (200-230V).
Engineered to work seamlessly with Mitsubishi HA and HP-H series AC servo motors and MELDAS CNC systems.
Built for demanding industrial environments with an IP20 rating and forced air cooling via an integrated fan.
Includes overload/thermal protection and an anti-misinsertion connector mechanism to prevent wiring errors.
| Feature | Specification |
|---|---|
| Axes Controlled | 1 (Single-Axis) |
| Rated Output Power | 4.5 kW |
| Rated Output Current | 16 A (input) |
| Input Voltage (AC) | 1-phase, 200–230 V, 50/60 Hz |
| Input Voltage (DC) | 270–311 VDC |
| Cooling Method | Forced air cooling (built-in fan) |
| Protection Rating | IP20 |
DingYan Machinery offers all Fanuc brand parts and accessories. Our inventory includes CNC controllers, drivers, amplifiers, encoders, motors, I/O modules, cooling fans, and other essential spare parts.
We aim to be your ultimate one-stop CNC machine tool accessories supplier. With extensive stock available, we are committed to supporting your business success in the global market.
DingYan is not an authorized distributor, reseller, or representative of any products displayed on this website. All trademarks, logos, and brand names are the exclusive property of their respective owners. Product references are provided for identification purposes only and do not imply endorsement, affiliation, or authorization.
DingYan Machinery is committed to delivering safe, reliable, and high-performance products. If you require product assistance, support, or custom brand sourcing, please feel free to get in touch with our team.
This drive is designed specifically for single-axis control, managing position, speed, and torque with high accuracy for individual servo motors.
The unit offers flexible power input options, supporting single-phase AC input (200–230 V, 50/60 Hz) as well as DC bus supply (270–311 VDC).
It is optimized for use with Mitsubishi HA and HP-H series AC servo motors, as well as MELDAS CNC control systems.
It features an IP20 protection rating, built-in dynamic braking, overload and thermal protection, and anti-misinsertion mechanisms on power connectors to avoid incorrect wiring.
The drive employs a forced air cooling system equipped with an integrated internal fan to maintain optimal operating temperatures in demanding environments.
