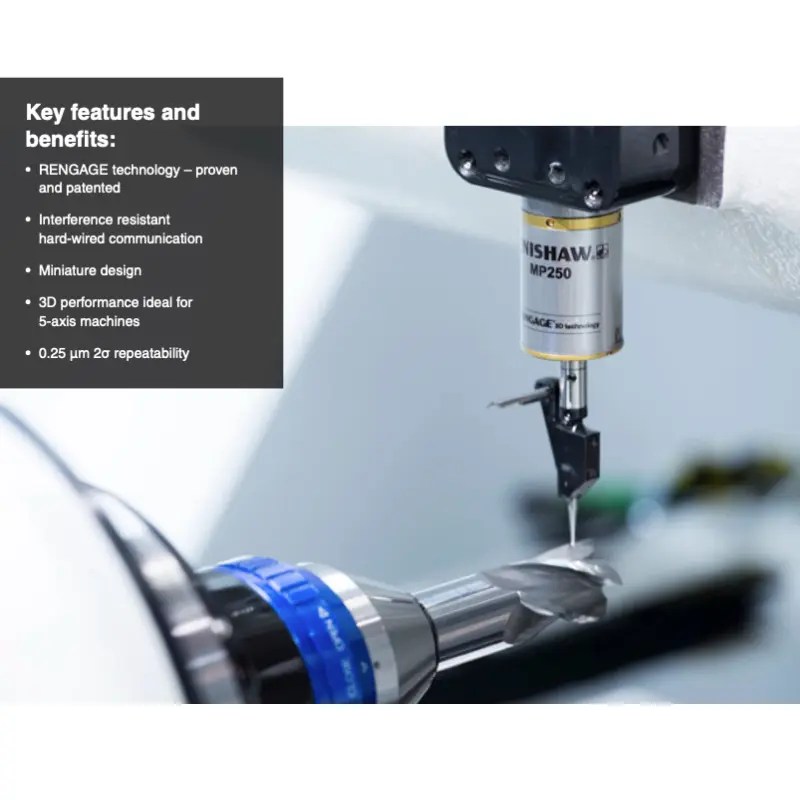

| Principal application | Workpiece inspection and job set-up on CNC grinders. |
| Transmission type | Hard-wired transmission |
| Compatible interfaces | HSI and HSI-C |
| Recommended styli | High modulus carbon fibre, lengths 50 mm (1.97 in) to 100 mm (3.94 in) |
| Weight | 64 g (2.26 oz) |
| Sense directions | ±X, ±Y, +Z |
| Unidirectional repeatability | 0.25 µm (10 µin) 2σ (note 1) |
| 2D lobing in X, Y | ±0.25 µm (10 µin) (note 1) |
| 3D lobing in X, Y, Z | ±1.00 µm (40 µin) (note 1) |
| Stylus trigger force (notes 2 and 5) |
XY plane (typical minimum): 0.08 N, 8 gf (0.29 ozf) +Z direction (typical minimum): 2.60 N, 265 gf (9.35 ozf) |
| Stylus overtravel force |
XY plane (typical minimum): 0.70 N, 71 gf (2.52 ozf) (note 3) +Z direction (typical minimum): 5.00 N, 510 gf (17.98 ozf) (note 4) |
| Minimum probing speed | 3 mm/min (0.12 in/min) |
| Sealing | IPX8 (EN/IEC 60529) |
| Operating temperature | +5 °C to +55 °C (+41 °F to +131 °F) |
