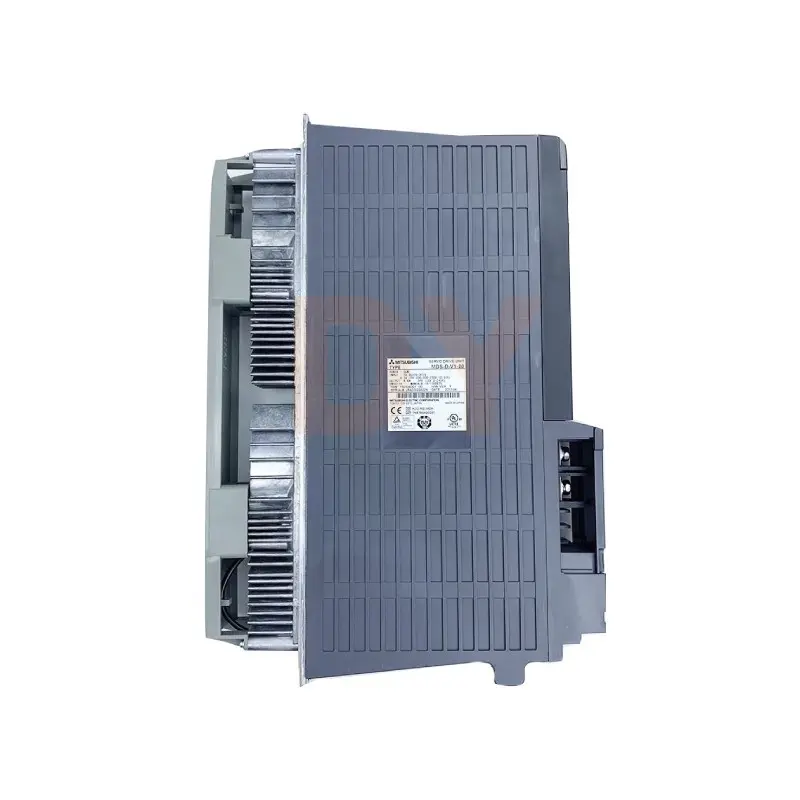

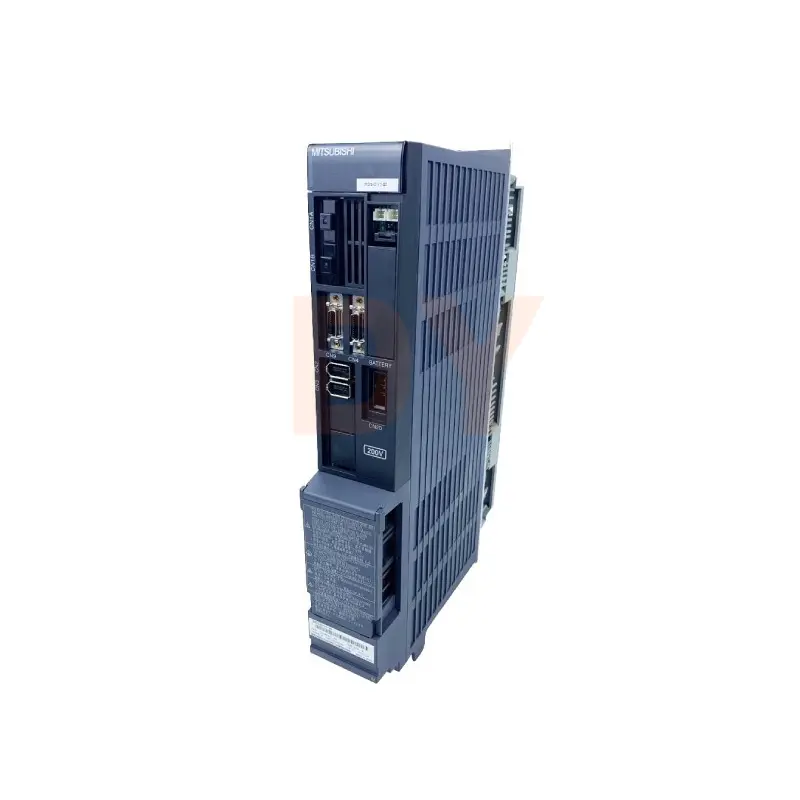

The unit is designed to manage the motion of one servo motor effectively.
Features stable position loop control (SHG control) and a high-speed CPU to improve positioning time, reduce machine vibration during acceleration/deceleration, and enhance overall cutting precision.
The MDS-D series design integrates components like the converter, drastically reducing volume and installation area in control cabinets.
Includes an integrated dynamic brake mechanism, which provides reliable and rapid stopping capabilities.
It can accept input from either a single-phase AC source (200-230V) or a DC bus power supply (270-311V).
The drive incorporates various safety precautions and features such as overload protection, thermal protection, and a mechanism to prevent misinsertion of motor power connectors.
It is specifically designed to be used with Mitsubishi HA series AC servo motors.
Built for industrial use with a robust structure, forced air cooling, and an IP20 protection rating (excluding terminal block).
| Feature | Specification |
|---|---|
| Axes Controlled | 1 (Single-Axis) |
| Rated Output Power | 1.0 kW |
| Rated Output Current | 4.6 A |
| Input Voltage (AC) | 1 Phase, 200–230 VAC, 50/60 Hz |
| Input Voltage (DC) | 270–311 VDC |
| Cooling Method | Forced air cooling (built-in fan) |
DingYan Machinery offer all the parts of Fanuc brand items. Products contains all the accessories of CNC controller, drivers and amplifier, encoder, motor, IO modules, fan and other spare parts.
We want to be your final one-stop CNC machine tool accessories supplier, we have most Fanuc products in stock, let’s help you be more successful in your market!
This unit is specifically built for single-axis motion control, precisely managing one AC servo motor.
It offers flexible power input options, supporting both a single-phase AC source (200–230 VAC, 50/60 Hz) and a DC bus power supply (270–311 VDC).
The drive unit is engineered to maintain high compatibility specifically with Mitsubishi HA series AC servo motors.
It features comprehensive safety measures including built-in thermal protection, overload protection, an integrated dynamic brake mechanism, and connectors configured to prevent misinsertion.
DingYan Machinery offers a wide range of CNC controller accessories, drivers, amplifiers, encoders, motors, IO modules, fans, and related spare parts.
DingYan Machinery is an independent supplier of high-performance CNC parts and accessories and is not an authorized distributor, reseller, or representative of the original product brand owners.
