This single unit can control two separate servo motors simultaneously, which saves space in control cabinets and simplifies wiring.
It delivers a powerful output of 4.5 kW for the first axis and 2.0 kW for the second axis, suitable for various heavy-duty machining operations.
The drive provides advanced speed, position, and torque control for smooth, efficient, and accurate motion, essential for high-demand manufacturing processes.
It accepts both DC bus power input (270-311V) and single-phase AC input (200-230V, 50/60Hz).
The unit features a D/A output for control signals, which helps in system diagnostics and troubleshooting using external measuring tools like oscilloscopes.
It is designed for use with the Mitsubishi HA series AC servo motors.
Built for reliability and enhanced machining precision, it features an integrated cooling system and protection features such as overload and thermal protection.
| Feature | Specification |
|---|---|
| Power Output (Axis 1 / Axis 2) | 4.5 kW / 2.0 kW |
| Output Current (Axis 1 / Axis 2) | 28 A / 13 A |
| Input Voltage (AC) | 1 Phase, 200–230 V, 50/60 Hz |
| Input Voltage (DC) | 270–311 V |
| Cooling Method | Forced air cooling (fan) |
| Weight | Approximately 11 lbs (5 kg) |
DingYan Machinery offer all the parts of Fanuc brand items. Products contains all the accessories of CNC controller, drivers and amplifier, encoder, motor, IO modules, fan and other spare parts.
We want to be your final one-stop CNC machine tool accessories supplier, we have most Fanuc products in stock, let’s help you be more successful in your market!
Dingyan is not an authorized distributor, reseller, or representative of any products displayed on this website. All trademarks, logos, and brand names are the exclusive property of their respective owners. Product references are for identification purposes only and do not imply endorsement, affiliation, or authorization.
If you require any product assistance or support, we are happy to provide it.
DingYan Machinery is committed to creating safe, reliable, and high-performance products for our customers. Furthermore, we will continue to strive to provide more products and brands upon customers’ requirement. Should you have any inquiry, please kindly send us emails or call us.

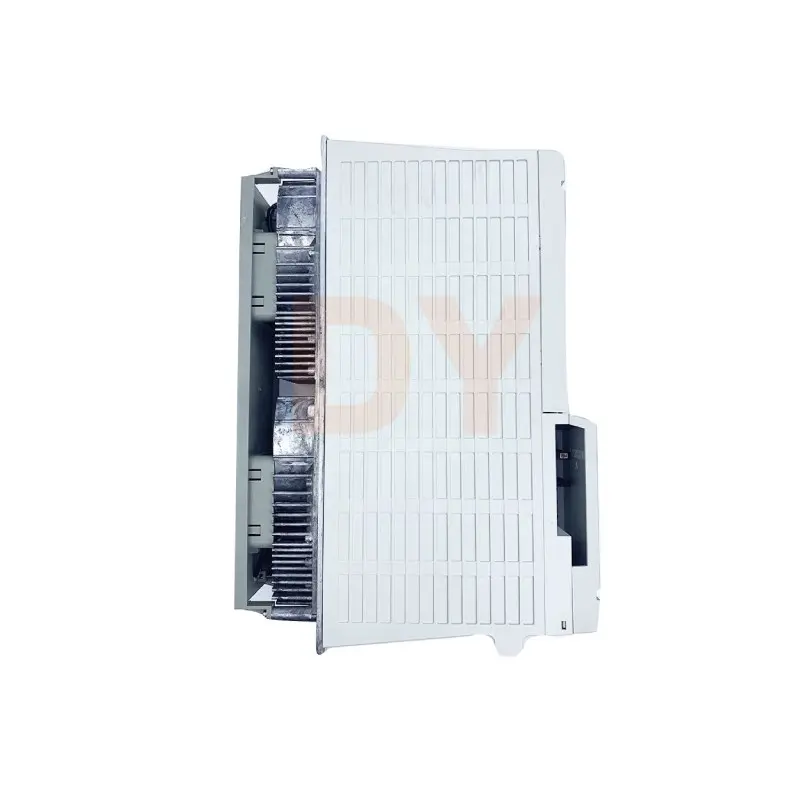

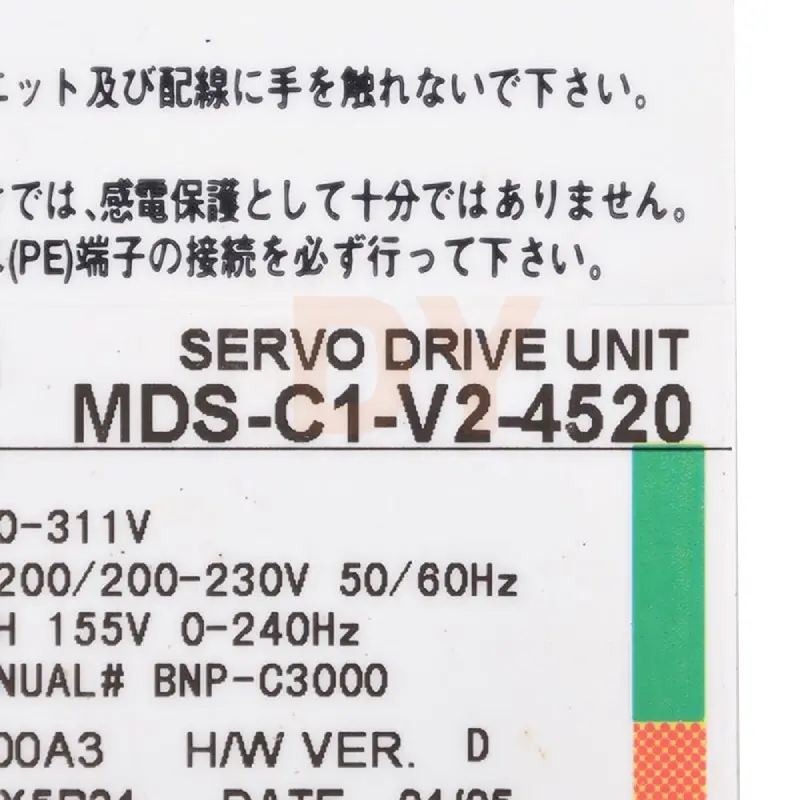

The MDS-C1-V2-4520 is a dual-axis AC servo drive engineered for Mitsubishi MELDAS CNC systems, designed to control two separate servo motors simultaneously in high-demand industrial machining tasks.
Axis 1 delivers a power output of 4.5 kW with a 28 A current, while Axis 2 provides 2.0 kW output with a 13 A current rating.
It supports flexible input configurations including single-phase AC input (200–230V, 50/60Hz) as well as DC bus power input (270–311V).
Yes, the MDS-C1-V2-4520 directly replaces older models such as the MDS-B-V2-4520, and can also be upgraded to the newer MDS-C1-V2-4520-N version.
The drive utilizes an integrated forced air cooling fan mechanism along with built-in thermal protection and overload prevention features to ensure sustained system stability.
