1 / 2

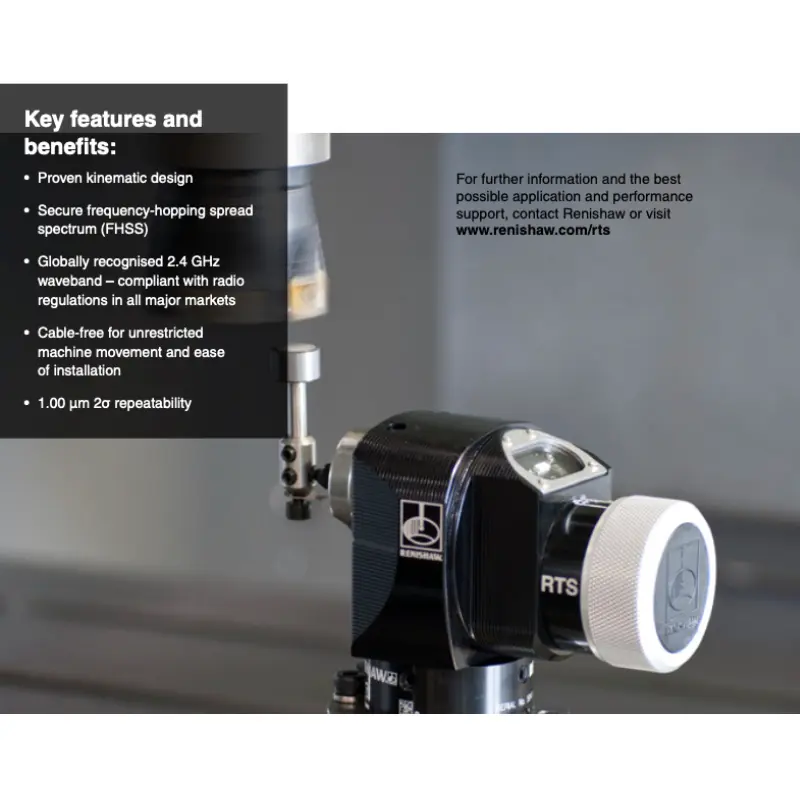

| Principal application | Tool measuring and broken tool detection on vertical and horizontal machining centres and gantry machining centres. |
| Transmission type |
Frequency-hopping spread spectrum (FHSS) radio Radio frequency 2400 MHz to 2483.5 MHz |
| Radio approval regions |
UK, EU, EFTA, Japan and USA (China exempt). For details about other regions, contact Renishaw. |
| Compatible interfaces | RMI-QE |
| Operating range | Up to 15 m (49.2 ft) |
| Recommended styli |
Disc stylus (tungsten carbide, 75 Rockwell C) or Square tip stylus (ceramic tip, 75 Rockwell C) |
| Weight with disc stylus (including batteries) | 870 g (30.69 oz) |
| Switch-on/switch-off options |
Radio on / Radio off |
| Battery life (2 × AA 3.6 V Lithium-thionyl chloride) |
Standby life: 99 months maximum Continuous use: 4860 hours maximum |
| Sense directions | ±X, ±Y, +Z |
| Unidirectional repeatability | 1.00 µm (40 µin) 2σ (note 1) |
| Stylus trigger force (notes 2 and 3) | 1.30 N to 2.40 N, 133 gf to 245 gf (4.68 ozf to 8.63 ozf) depending on sense direction |
| Sealing | IPX8 (EN/IEC 60529) |
| Mounting |
M12 (1/2 in) T bolt (not supplied) Optional SPIROL® pins to allow accurate remounting |
| Operating temperature | +5 °C to +55 °C (+41 °F to +131 °F) |
